Clamshell Grab Bucket

Rs-0

Product Description:

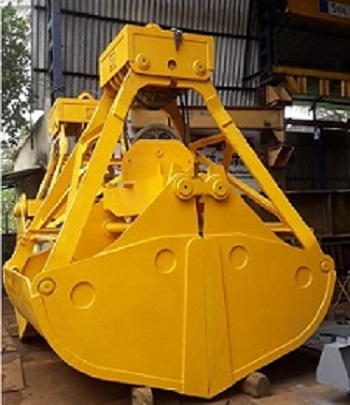

Clamshell grab bucket shown along side is re handling bucket. Specifications are as below. Capacity 3 CubM Type: 4 rope operation, 2 Nos closing & 2 Nos holding ropes. Empty bucket weight 3500 Kg Material handled carbon from 4 mm to 80 mm Bucket materials: Legs, bucket plates IS 2062 Bucket materials:Wire rope pullies Cast steel with sealed bearings Bucket materials:Shafts & pins IS 1570 (Eq EN 9) Bucket materials: Wear plates eq to IS 276 Cr steel, fixed to grab bottom with CSK HT bolts. Wire rope size 14 mm,Pully grove PCD 280mm This grab is supplied to a renowned company in India.
