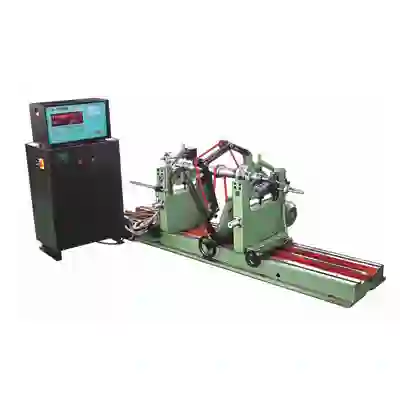

Horizontal Belt Driven Balancing Machine

Product Description:

We are the manufacturers and suppliers of Horizontal Belt Driven Balancing Machine- 1) Digital display for unbalance indication Amount and angle for unbalance for both planes displayed on separate DPMS. Hence linear accuracy is very good as compared to analog meter + digit for amount and + Degree for angle. 2) Digital display for RPM indication A DPM is provided to indicate balancing speed continuously as a standard feature. 3) Auto Stop No necessary to stop machine once started. It stops automatically after stabilization of unbalance results. 4) Simultaneous Indication Amount and Angle of unbalance in both planes displayed simultaneously and remains displayed (Stored) till next run. This totally eliminates operation of plane selector and reduces additional time for stabilization of readings in other plane. 5) Key-board Data of rotor dimensions and balancing tolerance i.e. values of A,B,C, R1,R2,tl11,tl12 are fed by key operation. Hence accuracy of data feedings accurate upto 1 digit. 6) Tolerance Indicators Separate LEDs are provided for both planes which glow when unbalance is reduced within balancing tolerance. 7) Auto-range Depending upon whether unbalance amount is more or less a respective course or fine range gets automatically selected till rotor gets balanced within tolerance limits. Multiplier operation is totally eliminated. 8) Data Store Data is provided with ‘Self check’ mode which checks proper functioning of digital display. LEDs is cyclic operation. This helps immediate fault detection. 9) Self Check Panel is provided with “Self-Check” mode which checks proper functioning of digital displays, LEDs is cyclic operation(optional). This helps immediate fault detection.
